MDC Diesel S300 63/68/14cm 03-07 Cummins 5.9l Direct Drop in Turbo
MDC Diesel S300 63/68/14cm 03-07 Cummins 5.9l Direct Drop in Turbo

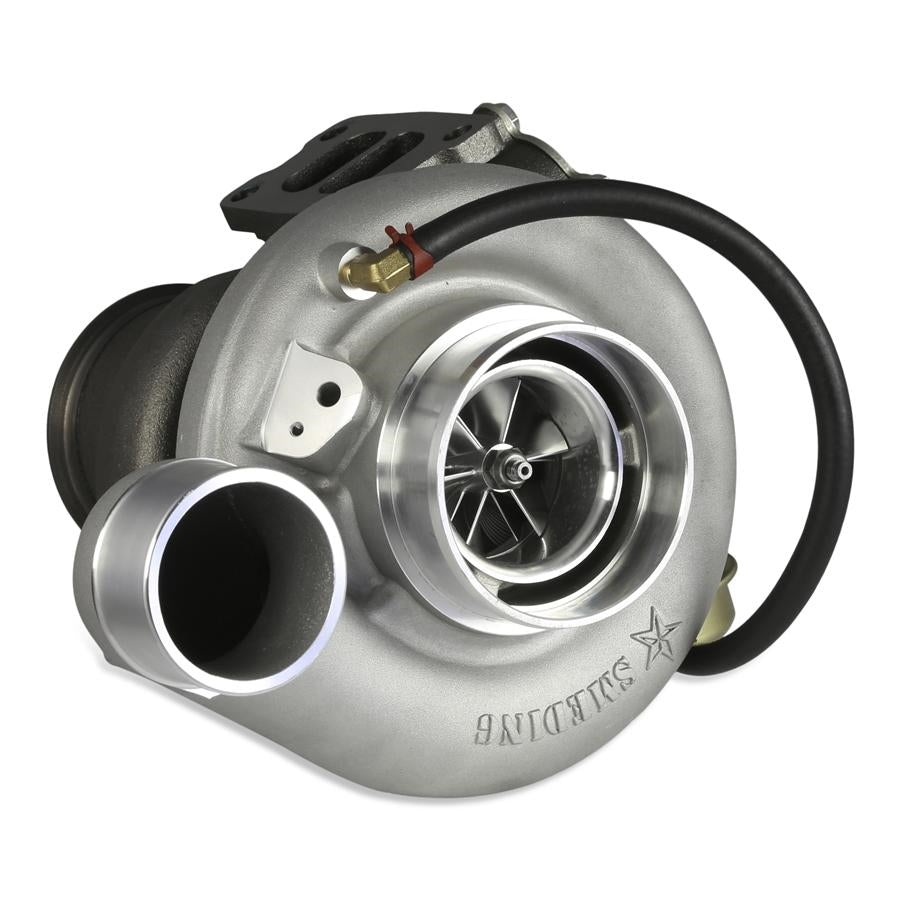

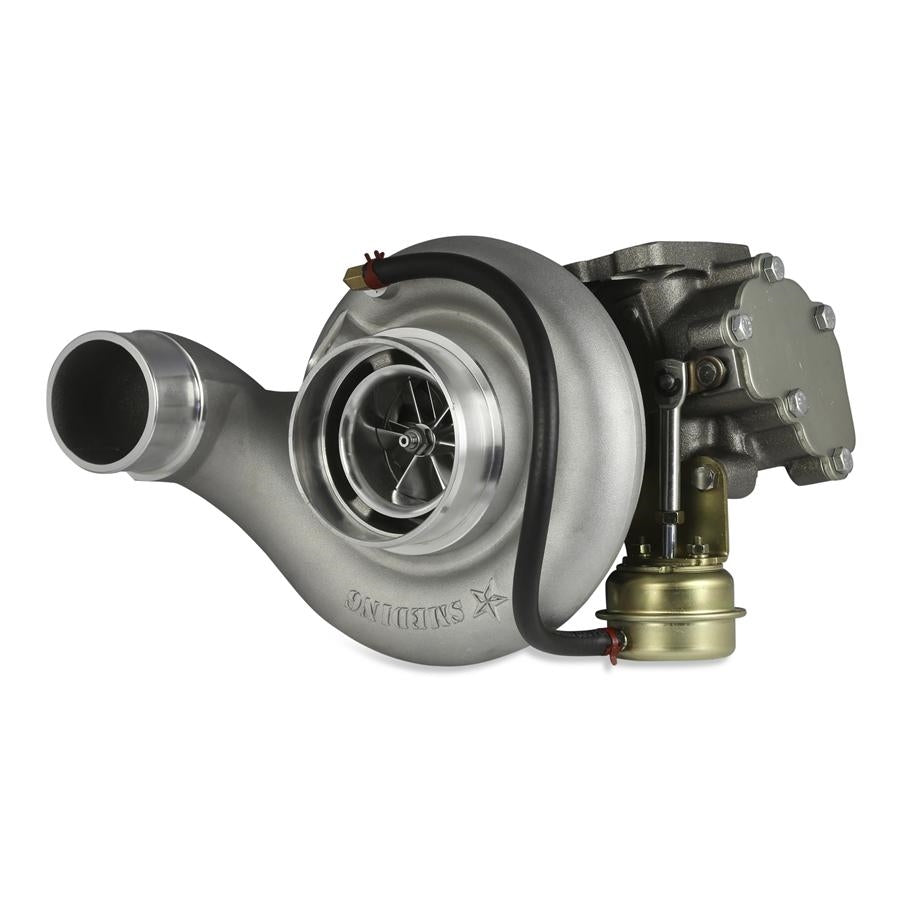

MDC Diesel S300 63mm Cummins drop in replacement turbo for the 03 to 07 5.9l Cummins. This S363/68 Cummins Direct Bolt in Turbo Is equipped with a large shaft and heavy duty bearings for superior durability and performance.
This turbo is rated for 600 horsepower, is a great all around turbo and tows excellent on 2003, 2004, 2005, 2006 and 2007 5.9l Cummins Turbo diesels.
Wheel Dimensions:
Compressor: 63 mm inducer / 88mm exducer, with Extended Tip Technology.
Turbine: 76.1 mm inducer / 68 mm exducer. Cast in Inconel 713 for high-temperature resistance.
Twin Scroll Divided T3 Gated Housing 14cm .80 A/R or 12CM .70 A/R.
Waste Gate set to 40psi and is user adjustable.
This Cummins Direct Bolt in Turbo Is great for a small upgrade to the stock he351 or he341 turbo that comes factory on the 03-07 5.9l Cummins.
2 M10-1.5X35mm Bolts required for install, not included
Specifications:
- S300 Frame, Large 8mm Shaft
- 63mm Compressor wheel Inducer
- 68mm Turbine Wheel
- Standard Brass 270 Degree Thrust OR Extreme Duty Steel 360* Thrust
- 12cm or 14cm GATED Turbine Housing
- Direct fit for 2003-2007 Cummins 5.9l Trucks
