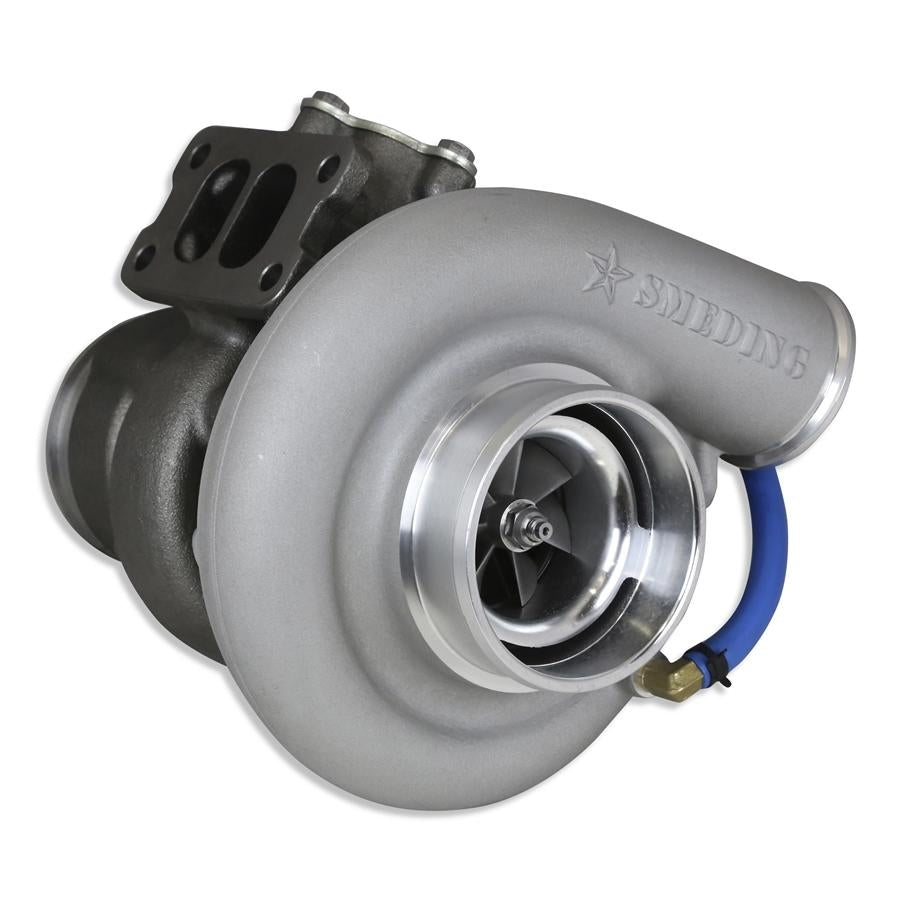

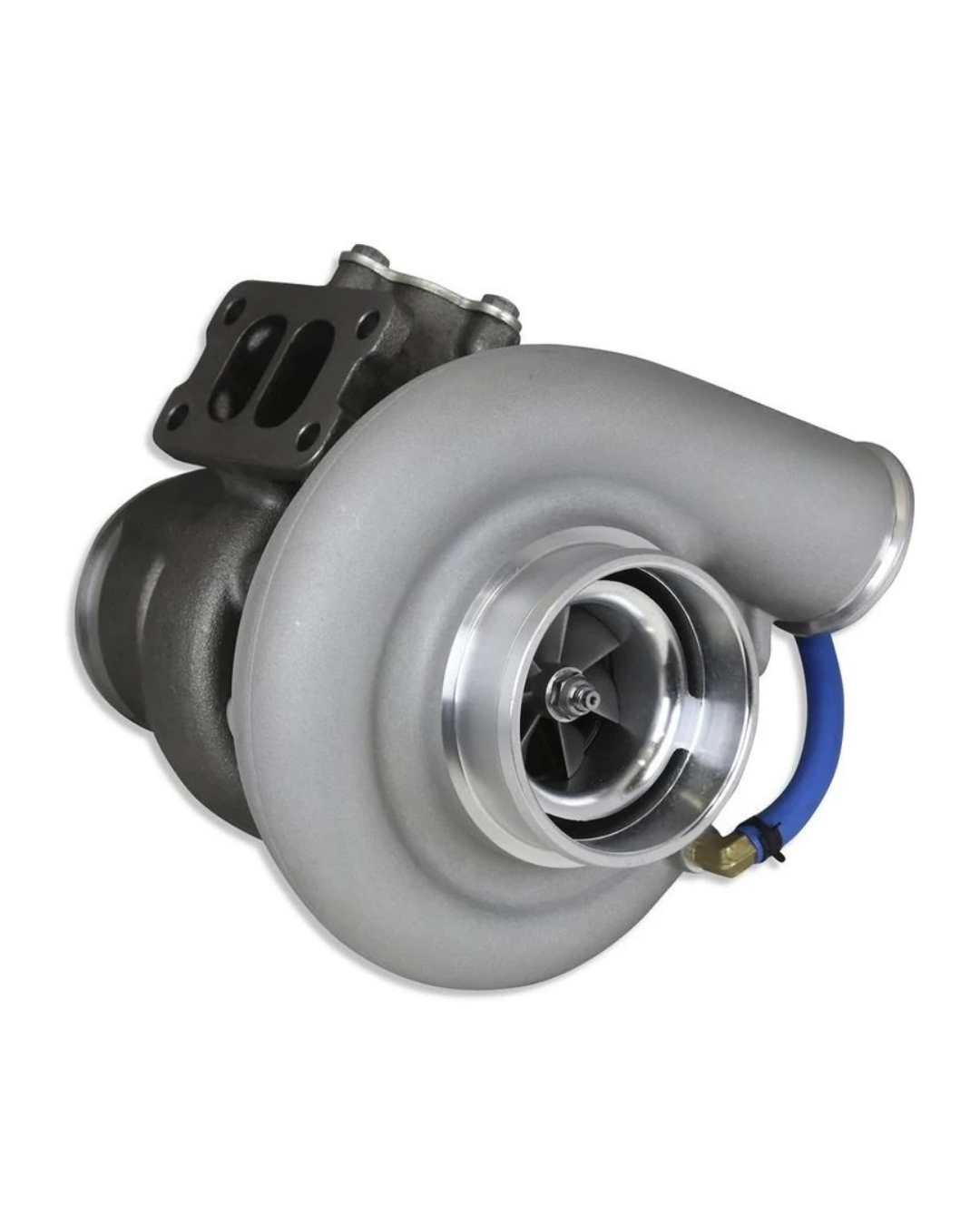

MDC Diesel S300 64.5/68/12CM 94-02 2nd Gen Cummins 5.9l Drop In Turbo

MDC Diesel S300 64.5/68/12CM 94-02 2nd Gen Cummins 5.9l Drop In Turbo

Regular price $1,299.00 USD
Regular price Sale price $1,299.00 USD
Sale Sold out
Shipping calculated at checkout.
Thrust Bearing
Downpipe Option

64.5/68/14CM or 12CM BILLET 94-02 12V and 24V Cummins 2nd Gen Direct Drop In Turbo
73mm Turbine Optional.

MDC Diesel S300 64.5mm Cummins drop in replacement turbo for the 94 to 02 5.9l Cummins. This S364,5/68 Cummins Direct Bolt in Turbo Is equipped with a large shaft and heavy duty bearings for superior durability and performance.

This turbo is rated for 675 horsepower, is a great all around turbo and tows excellent on 1994, 1995, 1996, 1997, 1998, 1999, 2000 and 2001 12V and 24V 5.9l Cummins Turbo diesels with proper fueling.

Wheel Dimensions:
Compressor: Billet 64.5 mm inducer / 88mm exducer, with Extended Tip Technology.
Turbine: 76.1 mm inducer / 68 mm exducer. Cast in Inconel 713 for high-temperature resistance.
OR 73mm Turbine

Twin Scroll Divided T3 Gated Housing 12CM .70 A/R.
Waste Gate set to 40psi and is user adjustable.

This Cummins Direct Bolt in Turbo Is great for a small upgrade to the stock HX35 or HY35 turbo that comes factory on the 1994-2002 5.9l Cummins.

This Turbo bolts in directly to all 94-2002 Cummins applications, you will not need ANYTHING else to install


Specifications:

  • BILLET 64.5mm inducer 88mm exducer
  • 68mm or 73mm turbine wheel
  • Extreme Duty STEEL 360* Thrust Bearing
  • 14cm or 12cm twin scroll Turbine housing
  • 1 year Unlimited Mileage Warranty against manufacture defects
  • No questions asked, one time center cartridge replacement available for $250.

THIS IS A GREAT TOWING TURBO ON 12V & 24V Cummins 5.9l trucks!
