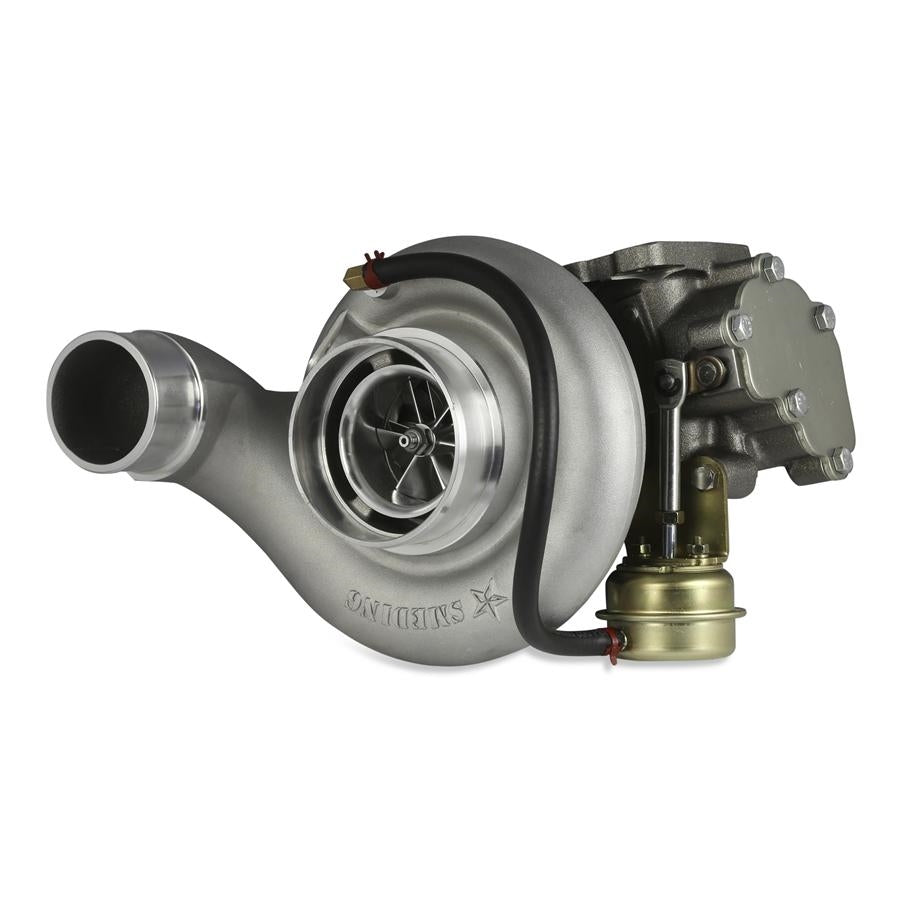

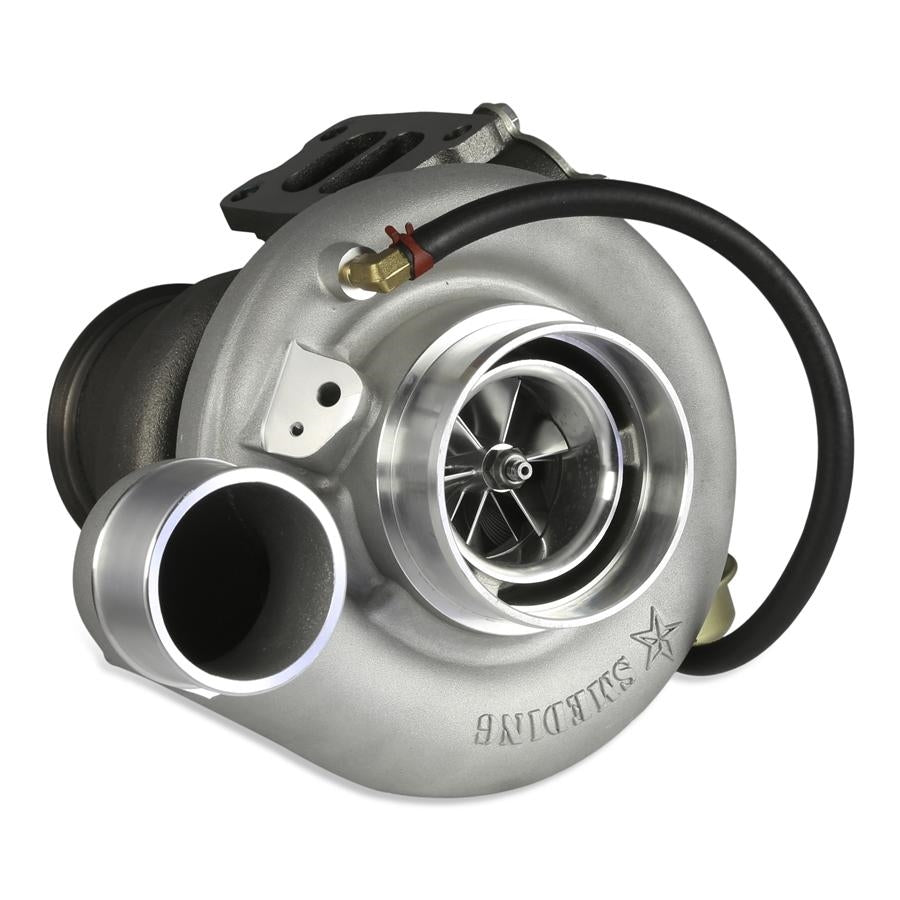

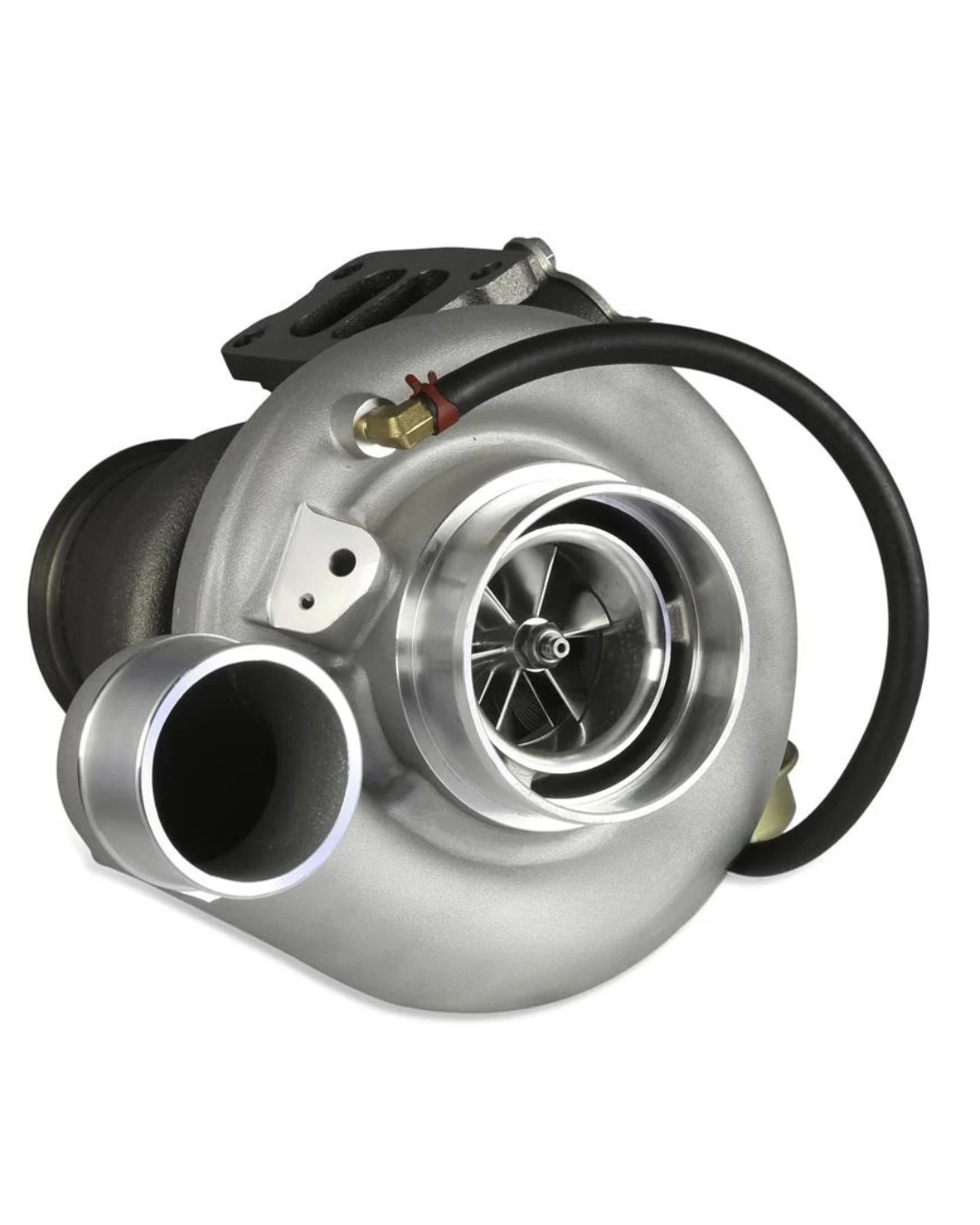

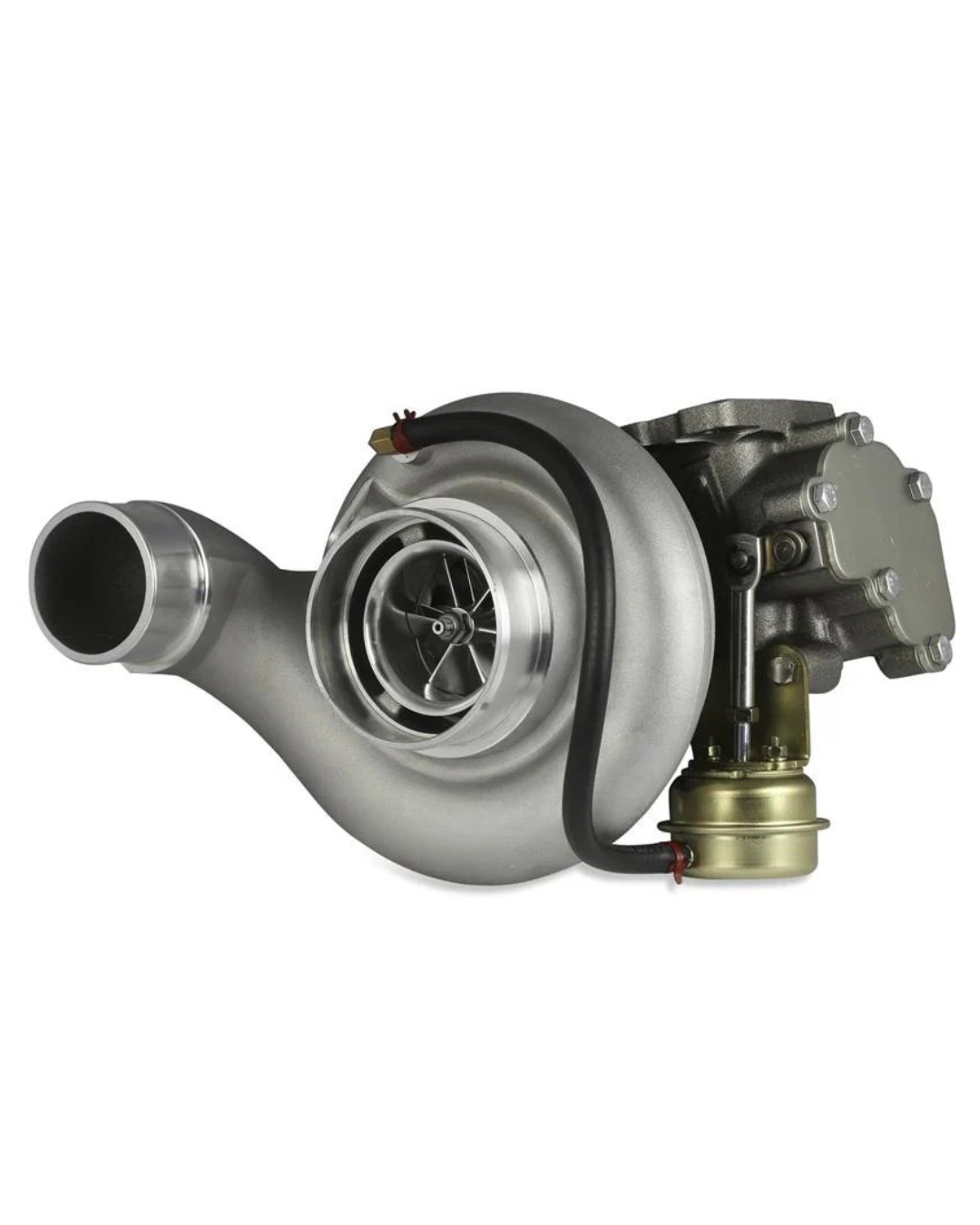

MDC Diesel S300 S364.5/68/14cm 2003-07 Cummins 5.9l Drop-In Turbocharger

MDC Diesel S300 S364.5/68/14cm 2003-07 Cummins 5.9l Drop-In Turbocharger

Regular price $1,299.00 USD
Regular price Sale price $1,299.00 USD
Sale Sold out
Shipping calculated at checkout.
Thrust Bearing

S364.5/68/14CM  Direct Bolt Turbocharger for 03-07 5.9l Cummins.
73mm Turbine Optional.

MDC Diesel S300 64.5mm Cummins drop in replacement turbo for the 03 to 07 5.9l Cummins. This S364.5/68 Cummins Direct Bolt in Turbo Is equipped with a large shaft and heavy duty bearings for superior durability and performance.

This turbo is rated for 675 horsepower, is a great all around turbo and tows excellent on 2003, 2004, 2005, 2006 and 2007 5.9l Cummins Turbo diesels.

Wheel Dimensions:
Compressor: 64.5 mm with Extended Tip Technology.
Turbine: 68 exducer. Cast in Inconel 713 for high-temperature resistance.

Twin Scroll Divided T3 Gated Housing  14CM .80 A/R.
Waste Gate set to 40psi and is user adjustable.

This Cummins Direct Bolt in Turbo Is great for a small upgrade to the stock HE351 or HE341 turbo that comes factory on the 03-07 5.9l Cummins.


2 M10-1.5X35mm Bolts required for install, not included

Specifications:
  • S300 Frame, Large 8mm Shaft
  • 64.5mm Compressor wheel Inducer
  • 68mm Turbine Wheel
  • Standard Brass 270 Degree Thrust OR Extreme Duty Steel 360* Thrust
  • 14cm GATED Turbine Housing
  • Direct fit for 2003-2007 Cummins 5.9l Trucks
THIS TURBO IS EXCELLENT FOR LIGHT TOWING FOR UP TO 675HP.
