MDC Diesel S300 S364.5/73/14cm 2003-07 Cummins 5.9l Drop-In Turbocharger
MDC Diesel S300 S364.5/73/14cm 2003-07 Cummins 5.9l Drop-In Turbocharger

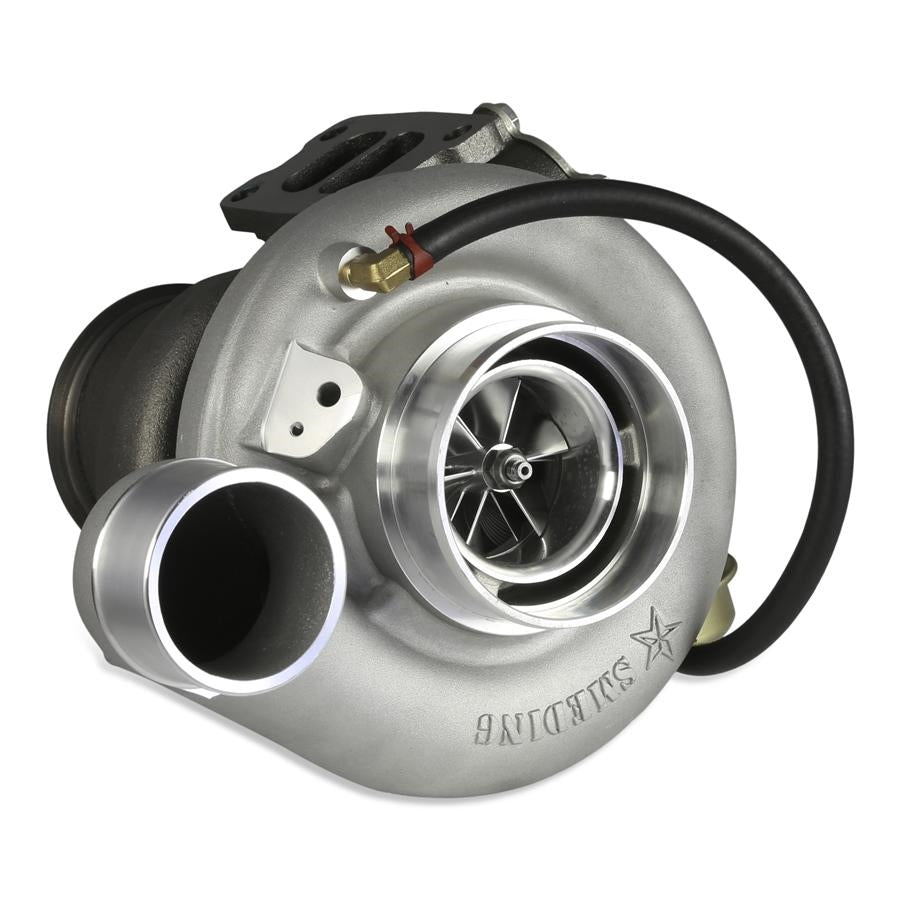

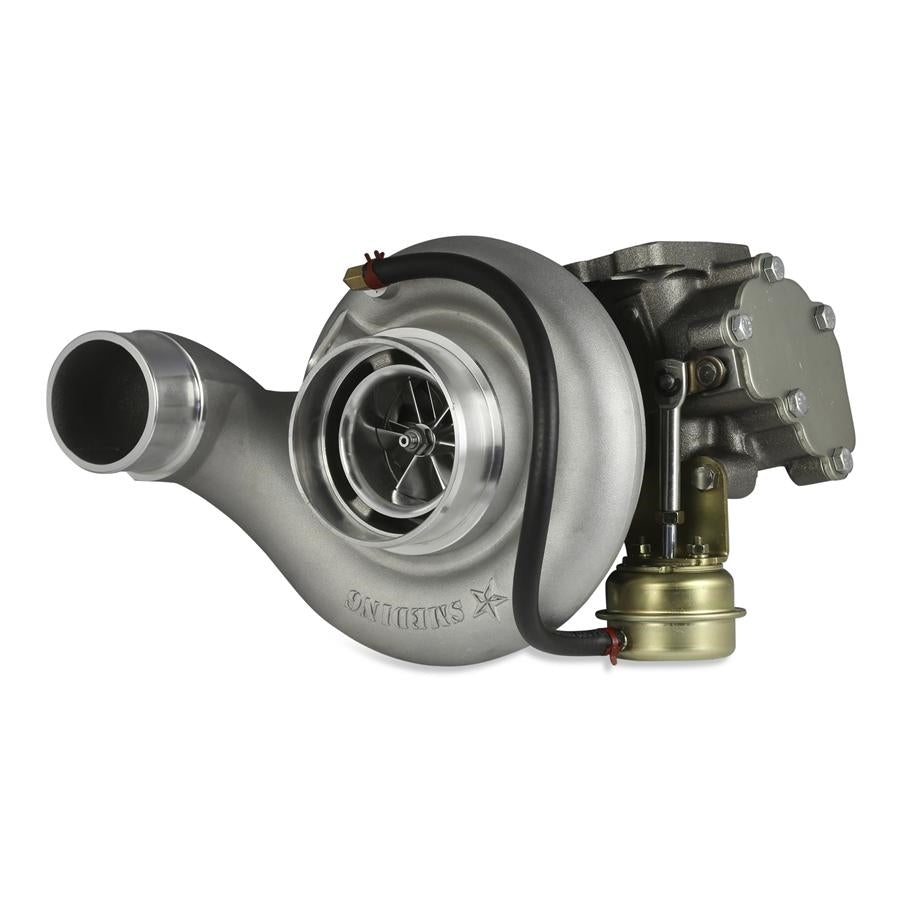

S364.5/73/14CM Direct Bolt Turbocharger for 03-07 5.9l Cummins.
MDC Diesel S300 64.5mm Cummins drop in replacement turbo for the 03 to 07 5.9l Cummins. This S364.5/73 Cummins Direct Bolt in Turbo Is equipped with a large shaft and heavy duty bearings for superior durability and performance.
This turbo is rated for 675 horsepower, is a great all around turbo and tows excellent on 2003, 2004, 2005, 2006 and 2007 5.9l Cummins Turbo diesels.
Wheel Dimensions:
Compressor: 64.5 mm with Extended Tip Technology.
Turbine:73mm exducer. Cast in Inconel 713 for high-temperature resistance.
Twin Scroll Divided T3 Gated Housing 14CM .80 A/R.
Waste Gate set to 40psi and is user adjustable.
This Cummins Direct Bolt in Turbo Is great for a small upgrade to the stock HE351 or HE341 turbo that comes factory on the 03-07 5.9l Cummins.
2 M10-1.5X35mm Bolts required for install, not included
Specifications:
- S300 Frame, Large 8mm Shaft
- 64.5mm Compressor wheel Inducer
- 73mm Turbine Wheel
- Standard Brass 270 Degree Thrust OR Extreme Duty Steel 360* Thrust
- 14cm GATED Turbine Housing
- Direct fit for 2003-2007 Cummins 5.9l Trucks
